Z Clevis are versatile metal connectors whose unique Z-shaped profile design offers flexible installation and excellent structural adaptability. Their surfaces are typically treated for corrosion resistance, and they are characterized by easy installation, high load-bearing capacity, and good weather resistance.

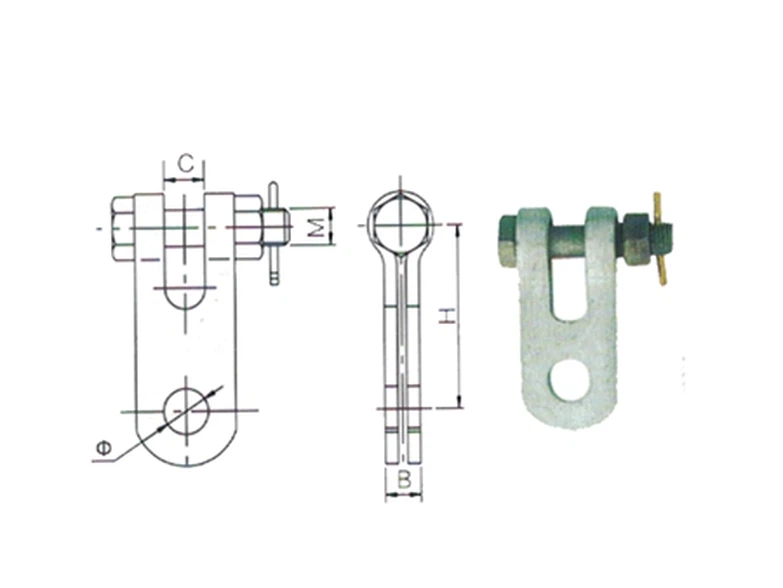

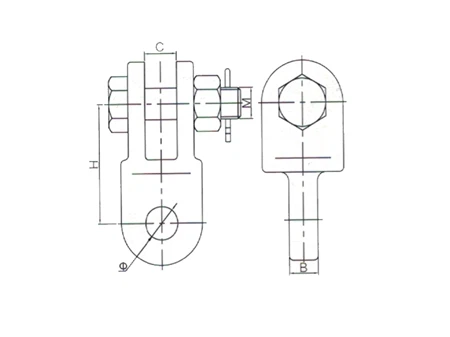

Product Parameters
|
State Grid model |
85 Standard Model |
Main dimensions (mm) |
Nominal breaking load (kN) |
Weight (kg) |
|||
|
C1 |
C2 |
M |
H |
||||
|
Z-0780 |
Z-7 |
18 |
18 |
16 |
80 |
70 |
0.6 |
|
Z-1080 |
Z-10 |
20 |
20 |
18 |
80 |
100 |
0.9 |
|
Z-12100 |
Z-12 |
20 |
24 |
22 |
100 |
120 |
1.2 |
|
Z-16100 |
Z-16 |
22 |
26 |
24 |
100 |
160 |
2.4 |
|
Z-21100 |
24 |
26 |
24 |
100 |
210 |
||
|
Z-21 |
30 |
30 |
27 |
120 |
210 |
3.3 |
|
|
Z-25110 |
28 |
30 |
27 |
110 |
250 |
||
|
Z-25 |
34 |
34 |
30 |
120 |
250 |
3.8 |
|
|
State Grid model |
85 Standard Model |
Main dimensions (mm) |
Nominal breaking load (kN) |
Weight (kg) |
||||
|
C |
B |
M |
Φ |
H |
||||
|
ZS-0780 |
ZS-7 |
18 |
16 |
16 |
20 |
80 |
70 |
0.6 |
|
ZS-1080 |
ZS-10 |
20 |
18 |
18 |
20 |
80 |
100 |
0.9 |
|
ZS-1280 |
ZS-12 |
22 |
22 |
22 |
24 |
80 |
120 |
1.0 |
|
ZS-16100 |
24 |
18 |
24 |
26 |
100 |
160 |
||
|
ZS-16 |
26 |
24 |
24 |
26 |
90 |
160 |
1.9 |
|
|
ZS-25 |
33 |
30 |
30 |
33 |
120 |
250 |
||
|
ZS-30 |
38 |
34 |
36 |
39 |
150 |
300 |
5.4 |
|
|
State Grid model |
Main dimensions (mm) |
Nominal breaking load (kN) |
Weight (kg) |
||
|
C |
M |
H |
|||
|
Z-32135 |
32 |
30 |
135 |
320 |
8 |
|
State Grid model |
Main dimensions (mm) |
Nominal breaking load (kN) |
||||
|
C |
B |
M |
Φ |
H |
||
|
ZBD-07/10-80 |
20 |
16 |
18 |
18 |
80 |
70 |
|
ZBD-07/12-80 |
20 |
16 |
22 |
18 |
80 |
70 |
|
ZBD-07/21-90 |
24 |
16 |
24 |
18 |
90 |
70 |
|
ZBD-07-08 |
20 |
16 |
16 |
18 |
80 |
70 |
|
ZBD-10/12-80 |
20 |
16 |
22 |
20 |
80 |
100 |
|
ZBD-10/16-90 |
22 |
16 |
24 |
20 |
90 |
100 |
|
ZBD-10/21-90 |
24 |
16 |
24 |
20 |
90 |
100 |
|
ZBD-10-80 |
20 |
16 |
18 |
20 |
80 |
100 |
|
ZBD-12/25-110 |
28 |
16 |
27 |
24 |
110 |
120 |
|
ZBD-12-90 |
20 |
16 |
22 |
24 |
90 |
120 |
|
ZBD-16/21-90 |
24 |
18 |
24 |
26 |
90 |
160 |
|
ZBD-16/32-120 |
32 |
18 |
30 |
26 |
120 |
160 |
|
ZBD-16-90 |
22 |
18 |
24 |
26 |
90 |
160 |
|
ZBD-21-90 |
24 |
20 |
24 |
26 |
90 |
210 |
|
ZBD-25-110 |
28 |
24 |
27 |
30 |
110 |
250 |
|
ZBD-32-120 |
32 |
28 |
30 |
30 |
120 |
320 |
Product Features
Efficient Structure
The "Z" shaped cross-section provides excellent bending and shear resistance in specific directions, effectively transmitting and distributing loads.
Flexible Installation
The unique asymmetrical shape facilitates connection, fixing, or adjustment between two misaligned or non-parallel components, simplifying the installation process.
Strong Adjustability
Typically designed with elongated adjustment holes, allowing for fine-tuning of position during installation to compensate for construction errors.
Technical Support
Pre-sales Guidance
Provides product selection and installation plan consultation, with multilingual technical drawings.
Delivery and Packaging
Packaged in sets according to installation units, with complete accessories and clear installation instructions.
Remote Support
Provides installation guidance via video and instant messaging, and maintains a database of frequently asked questions.
Our Service
Full Industry Chain Integration Advantages
Covering the entire chain from R&D to production, sales, and after-sales service, leveraging the Yongnian fastener industry cluster (accounting for 15% of national output), we achieve a 72-hour rapid response time and a customer satisfaction rate of 98.6%
Intelligent Production System
Equipped with an ERP+MES management system, key processes achieve 85% automation, and the product defect rate is controlled at 0.12% . We are ISO9001:2015 certified.
Customized R&D Capabilities
Our 8-person technical team develops an average of 12 new products annually, accurately identifying customer needs and providing detailed information on various fasteners according to customer requirements. We support 48-hour drawing production for non-standard parts, and our special material products offer a 40% improvement in corrosion resistance (third-party testing report).
FAQ
Q: Can you provide samples?
A: Yes, but the customer needs to bear the international shipping costs. For customized products, we support prototyping, and a certain fee will be charged.
Q: What is your delivery time?
A: Standard export packaging is carton/wooden box/pallet, moisture-proof and rust-proof. Special packaging or labeling can be done according to customer requirements.
Q: How do you guarantee the consistency of the Z-shaped connector quality?
A: We have a complete quality control process from raw material incoming inspection, production process control to finished product outgoing testing. Material reports and factory inspection certificates are provided with each batch of products. We welcome customers to appoint a third party for inspection.
