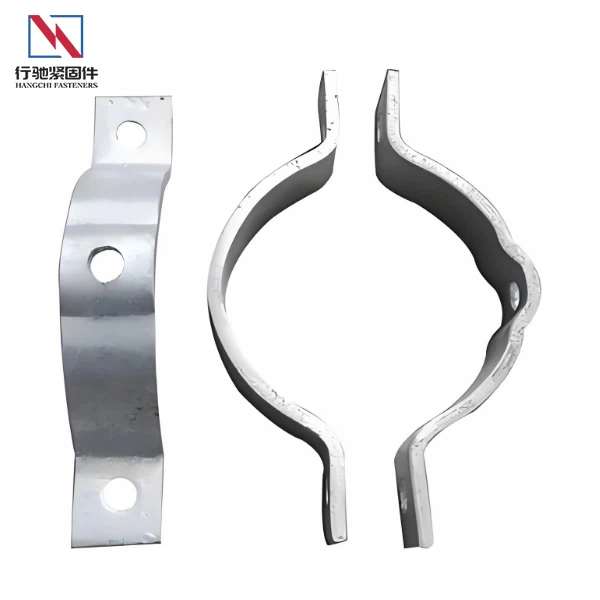

Galvanized cable clamps are U-shaped metal clamps used to secure and protect cables, offering excellent corrosion and abrasion resistance. Their design facilitates installation and adjustment, providing a secure grip on cables of varying diameters and preventing displacement or wear due to vibration, gravity, or environmental factors.
Product Feature
High strength and durability
Available in various materials, including carbon steel, stainless steel, and alloy steel, offering excellent impact and aging resistance.
01
Easy installation
No welding or drilling required; quick installation and maintenance; simple upkeep.
02
Anti-slip and shock-resistant
T Anti-slip and shock-resistant: Effectively protects cables, preventing loosening or detachment, and adaptable to extreme environments.
03
Corrosion resistant
Some products undergo hot-dip galvanizing and other surface treatments, providing good corrosion resistance.
04
Typical structure
The clamp achieves its fastening function through the following typical structures:
Screw-fastening structure
A screw rod applies radial pressure, allowing for adjustment of screw tightness to accommodate different pipe diameters. It is reusable and can be repeatedly disassembled and reassembled.
End locking system
Composed of the clamp body, connecting sleeve, and fixing screw. Two sets of fasteners achieve semi-relaxed fixation through fixing notches and connecting pins. A bidirectional mechanical load distribution mechanism was first proposed in a new patent in 2024.
Embedded connection structure
The left and right halves of the clamp are combined with a pin through grooves. Bolt holes are provided at the mounting ears, suitable for fixing rods with diameters of 250mm or more.
Product Parameters
|
model |
Applicable wire range |
Main dimensions (mm) |
Connector strength (kN) |
||
|
Φ |
H |
Φ1 |
|||
|
BGD-07/48-1 |
13.9~18.9 |
48 |
190 |
18 |
70 |
|
BGD-07/45-2 |
18.9~23.9 |
48 |
190 |
18 |
70 |
|
BGD-07/48-3 |
23.9-27.6 |
48 |
190 |
18 |
70 |
|
BGD-10/48-2 |
18.9-23.9 |
48 |
190 |
20 |
100 |
|
BGD-10/48-3 |
23.9-27.6 |
48 |
190 |
20 |
100 |
|
model |
Main dimensions (mm) |
Connector strength (kN) |
||
|
Φ |
H |
Φ1 |
||
|
BG-07/60 |
60 |
180 |
18 |
70 |
|
BG-10/60 |
60 |
180 |
20 |
100 |
Awarded with Qualification Certificates
The company has obtained ISO9001 quality management system, ISO14001 environmental management system, and OHSAS18001 occupational health and safety management system certifications, as well as AAA-level enterprise credit certification. It has also received product type test reports issued by the National Electrical Product Quality Supervision and Inspection Center and the National Railway Product Quality Supervision and Inspection Center.
Company environment
Our Service
Full Industry Chain Integration Advantages
Covering the entire chain from R&D to production, sales, and after-sales service, leveraging the Yongnian fastener industry cluster (accounting for 15% of national output), we achieve a 72-hour rapid response time and a customer satisfaction rate of 98.6% .
Intelligent Production System
Equipped with an ERP+MES management system, key processes achieve 85% automation, and the product defect rate is controlled at 0.12%. We are ISO9001:2015 certified.
Customized R&D Capabilities
Our 8-person technical team develops an average of 12 new products annually, accurately identifying customer needs and providing detailed information on various fasteners according to customer requirements. We support 48-hour drawing production for non-standard parts, and our special material products offer a 40% improvement in corrosion resistance (third-party testing report).
FAQ
Q: What is the purpose of galvanizing the surface of the cable clamp?
A: he galvanized layer effectively isolates the steel from the external environment, slowing down corrosion and improving durability, making it suitable for long-term fixed use.
Q: Will the clamping process damage the cable sheath?
A: The structural design focuses on even force distribution and stable clamping, preventing cutting or crushing damage to the cable's outer sheath.
Q: Does the product support customization?
A: It can be customized according to size, structural form, and installation requirements to meet the assembly needs of different projects.
